SL306 (P&B Half Mortise)

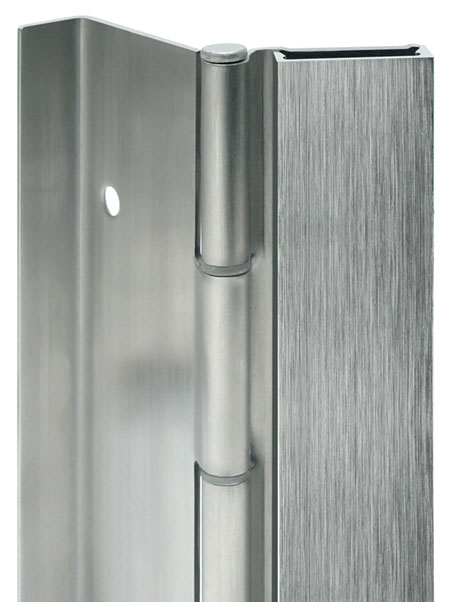

SL306 shown above

Pin & Barrel Half Mortise Continuous Hinges

Pin & Barrel Part Number Interchange

SL306

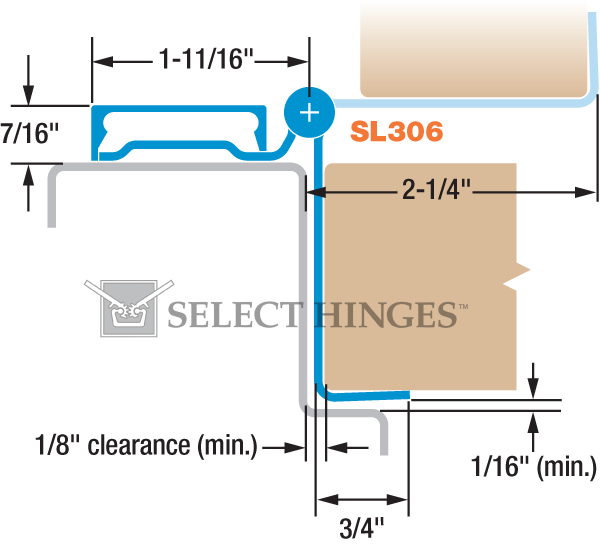

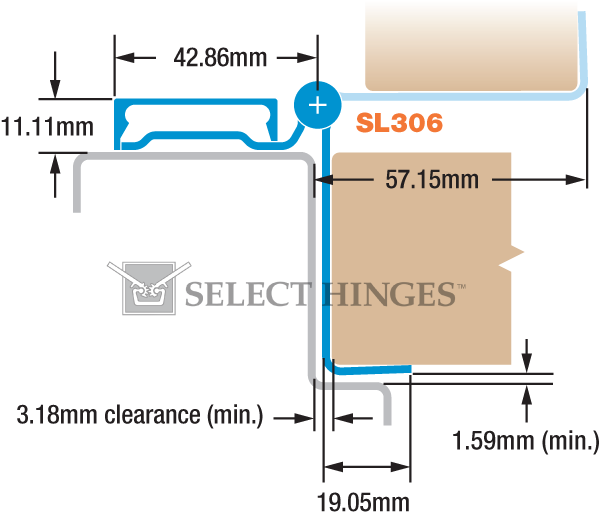

SL306 imperial diagram SL306 metric diagram

Stainless steel half mortise hinge with edge guard.   Mounts on frame face and door edge.  Tamper-resistant frame leaf cover.
For 1-3/4"44.45 mm doors weighing up to 600 lb.272.16 kg., 48"1219.2 mm max. door width.

SL306 pin & barrel continuous hinges are BHMA Grade 1 certified.

Pin & Barrel Warranty

SELECT brand Pin & Barrel Continuous Hinges are guaranteed to be free of defects in materials and workmanship for a period of 25 years. No claims for faulty or improper installation, consequent damages, repairs or back charges will be allowed. This warranty does not cover defects or damage resulting from vandalism, abuse, improper maintenance, improper storage, shipping or handling, alteration or removal of the factory-applied lubricant, anodizing or painting of product in the field.
