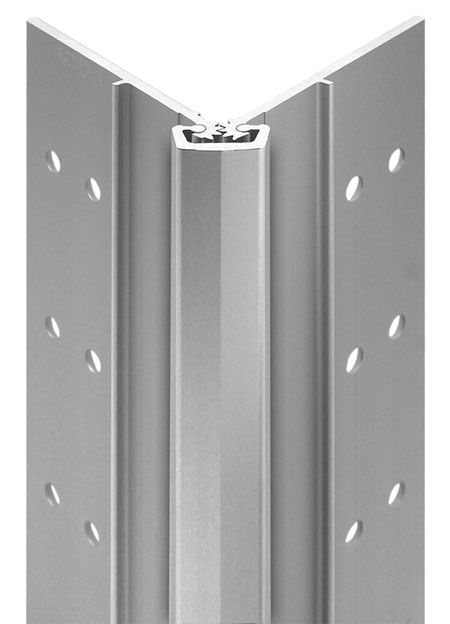

SL40 (Gear Wide Throw)

Wide Throw Geared Continuous Hinge


What does SD/HD/LL rating mean?

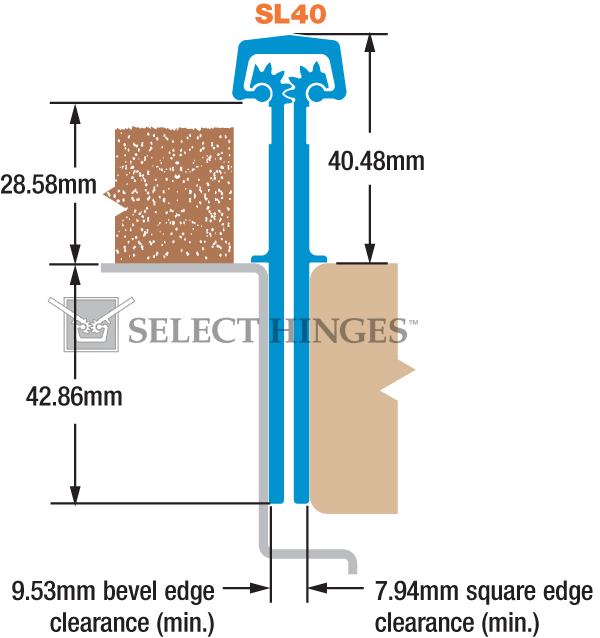

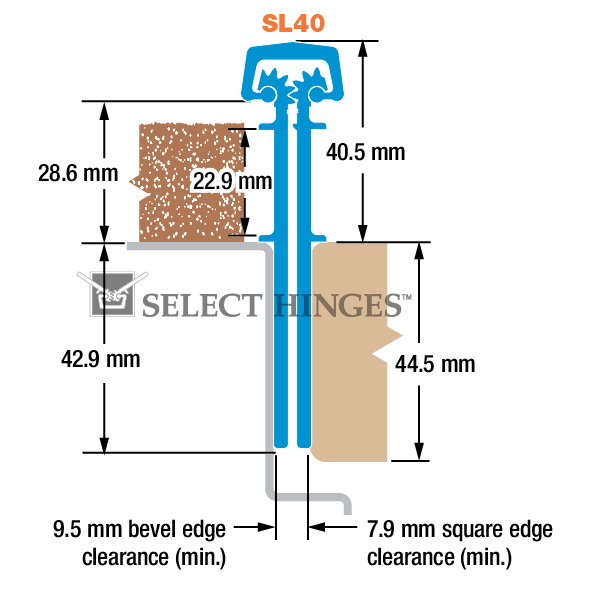

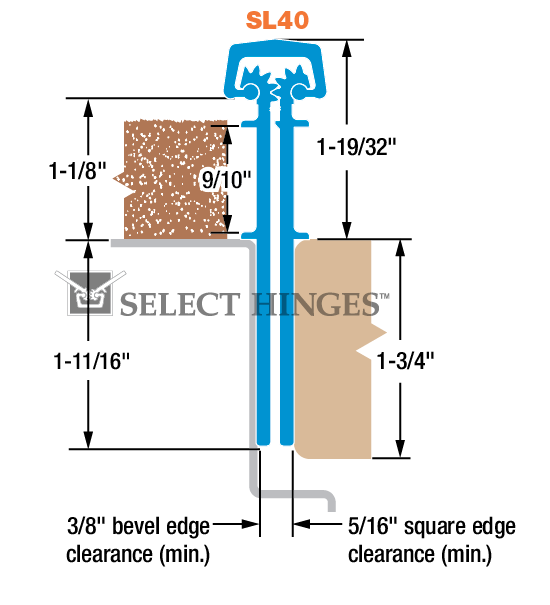

SL40 HD imperial diagram SL40 HD metric diagram

Frame leaf covers butt hinge preps. Flush mounted (no door inset). For 1-3/4"44.45 mm doors.

SL40 HD geared continuous hinges are BHMA Grade 1 certified.

Warranty Information

warranty thumb-1SELECT's Continuous Warranty™ covers any failure of our geared continuous hinges under normal use with no expiration date, as long as they are properly installed. The warranty has no time limit ... it literally lasts forever. If ever a replacement hinge is needed, building owners simply contact SELECT - at any time in the future. No one else in the industry can match it.

Please click here to view SELECT Hinges' warranty for its line of geared continuous hinges.


Others claim their hinges are the best. We prove it. Our geared continuous hinges have resisted more brutal testing than any. Read more.
