Concealed Geared Continuous Hinges
SL11 SD/HD/LL


Flush mounted (no door inset). For 1-3/4"44.45 mm doors.
All SL11 geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish
View BILT® Video on YouTube

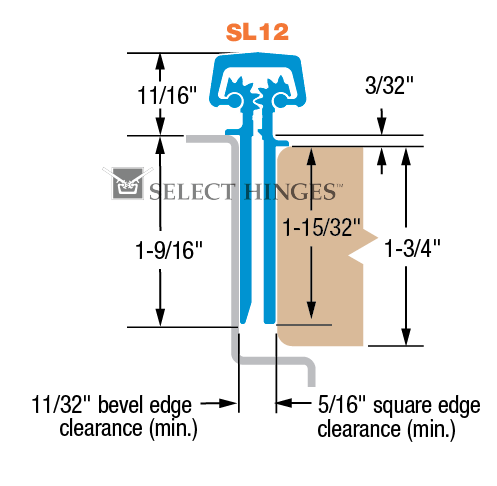

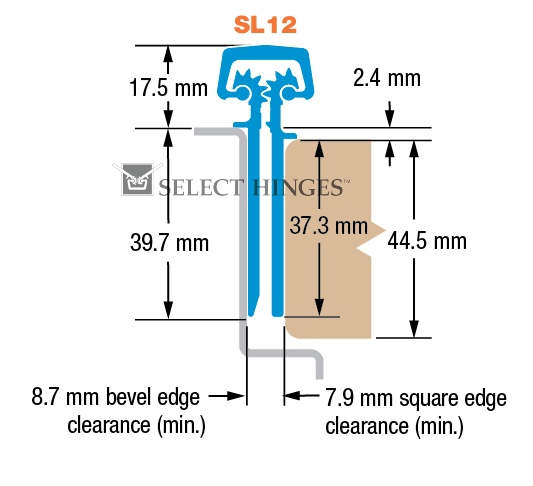

SL12 HD


Beveled frame leaf allows for weather-stripping or smoke seal. Ideal for storefront applications and compatible with EFCO doors. Staggered hole pattern. 3/32"2.38 mm door inset. For 1-3/4"44.45 mm doors.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish
SL14 SD/HD


Narrow frame leaf allows for weatherstripping or smoke seal. Door edge protector. 1/16"1.59 mm door inset. For 1-3/4"44.45 mm doors.
All SL14 geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish
SL18 SD/HD/LL


Beveled frame leaf allows for weather-stripping or smoke seal. Ideal for storefront applications. 1/8"3.17 mm door inset. For 1-3/4"44.45 mm doors.
All SL18 geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish
SL24 SD/HD/LL


Door edge protector. Frame leaf covers butt hinge preps. 1/16"1.59 mm door inset. For 1-3/4"44.45 mm doors.
All SL24 geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

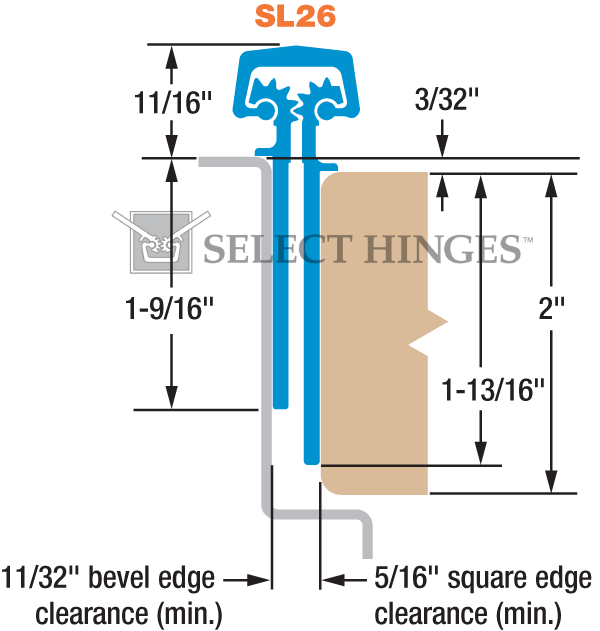

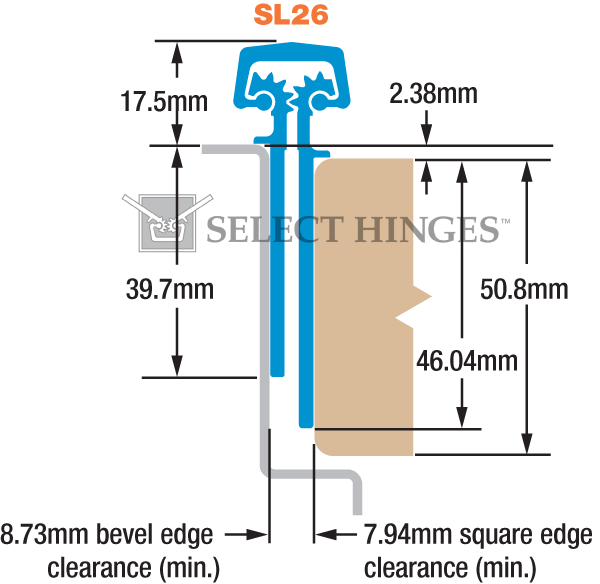

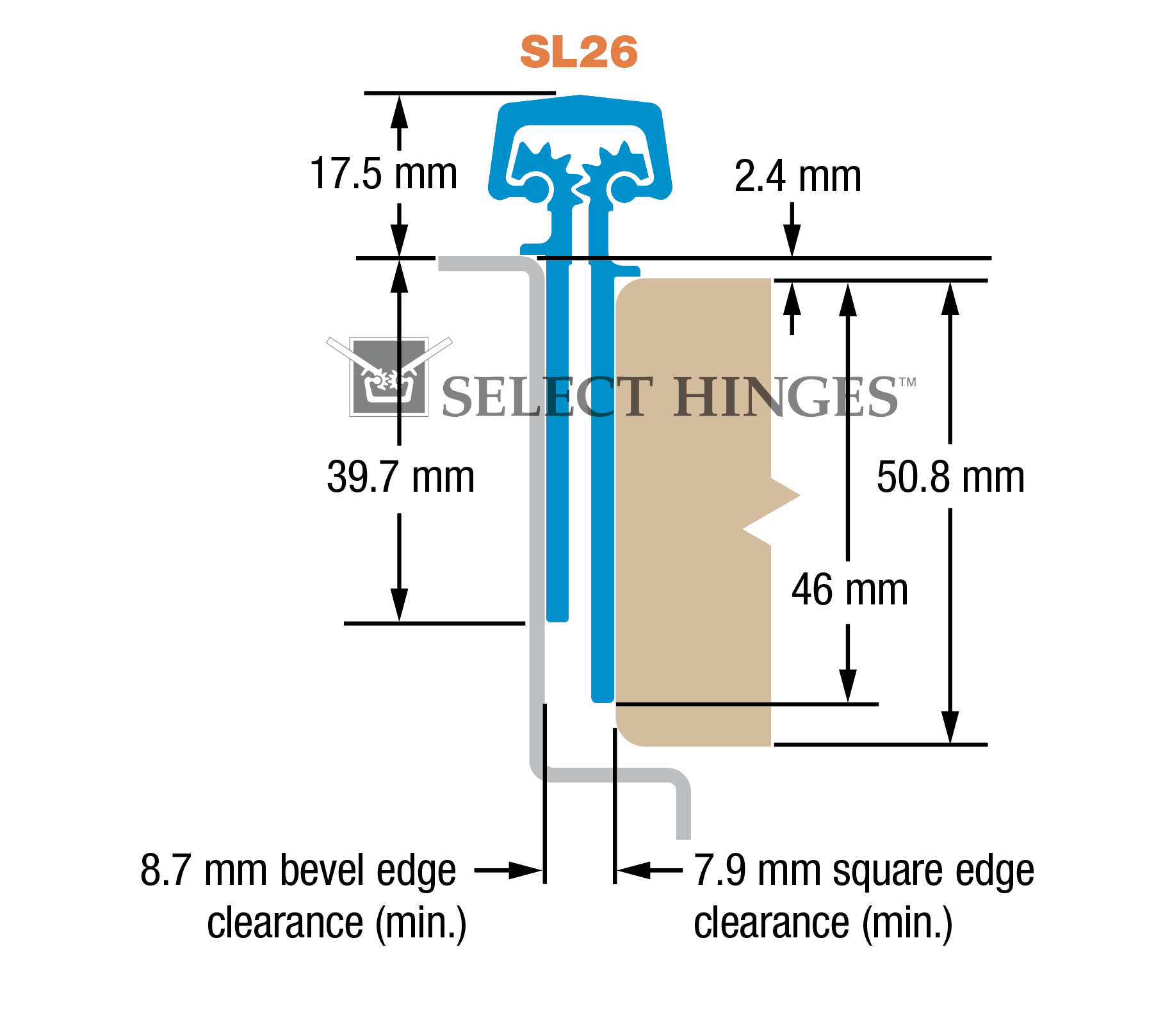

SL26 LL


For 2”50.8 mm to 2-1/4"57.15 mm doors, up to 1,000 lb454 kg. Narrow frame leaf. Staggered hole pattern. 3/32"2.38 mm door inset.
SL26 LL geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

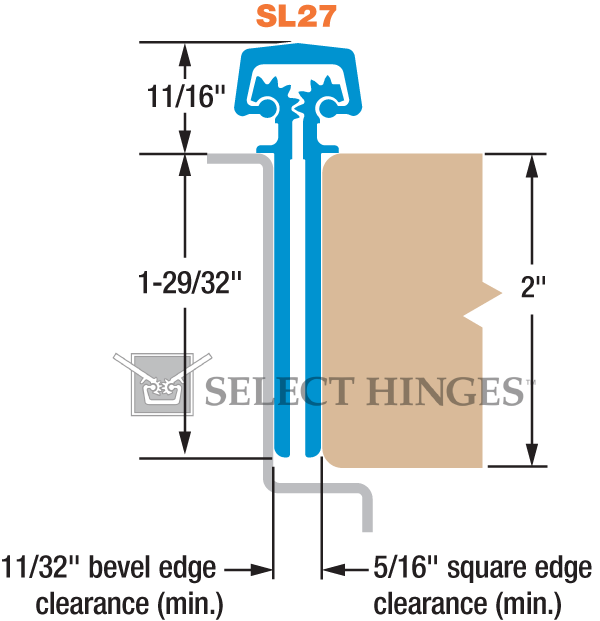

SL27 LL


For 2”50.8 mm to 2-1/4"57.15 mm doors, up to 1,000 lb454 kg. Frame leaf covers butt hinge preps. Staggered hole pattern. Flush mounted (no door inset).
SL27 LL geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Concealed Through-Wire
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

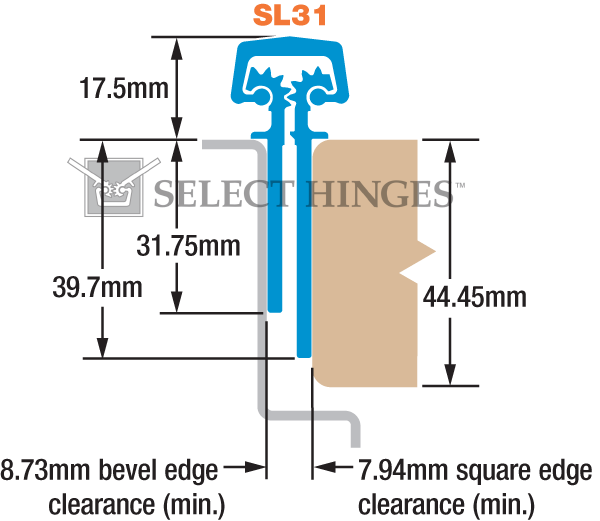

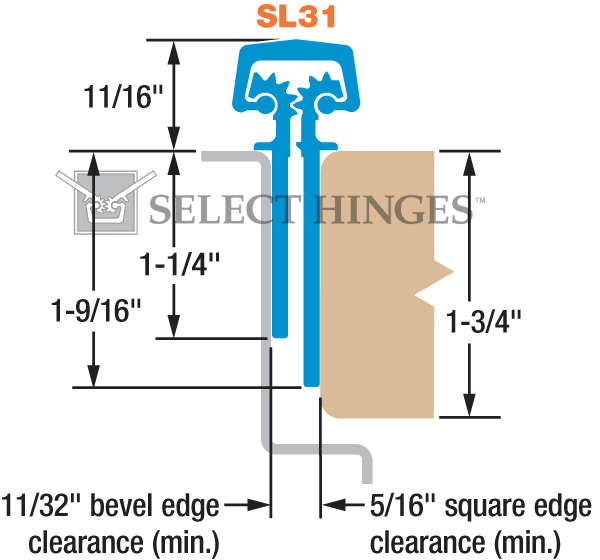

SL31 HD


Flush mounted (no door inset).
For 1-3/4"44.45 mm doors.
SL31 HD geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

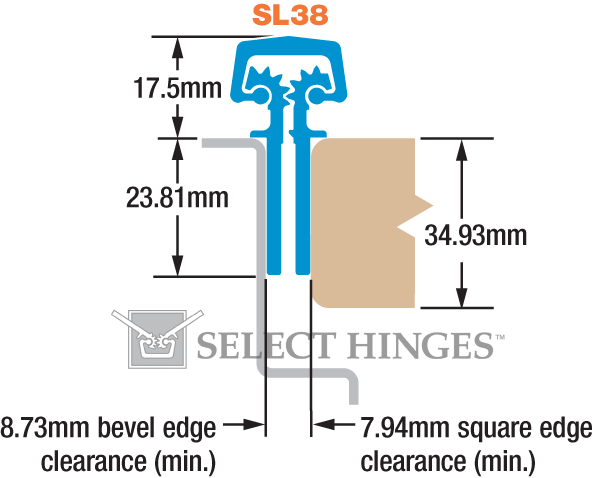

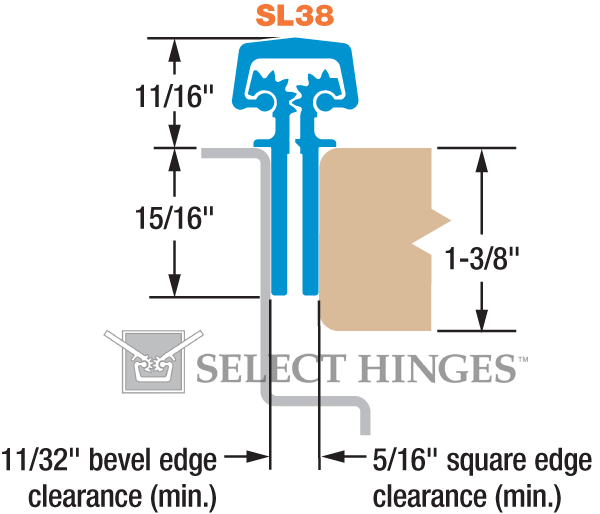

SL38 SD


For 1”25.4 mm to 1-3/8”34.93 mm doors. Flush mounted (no door inset).
Preparations & Accessories ▶
Electrical
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

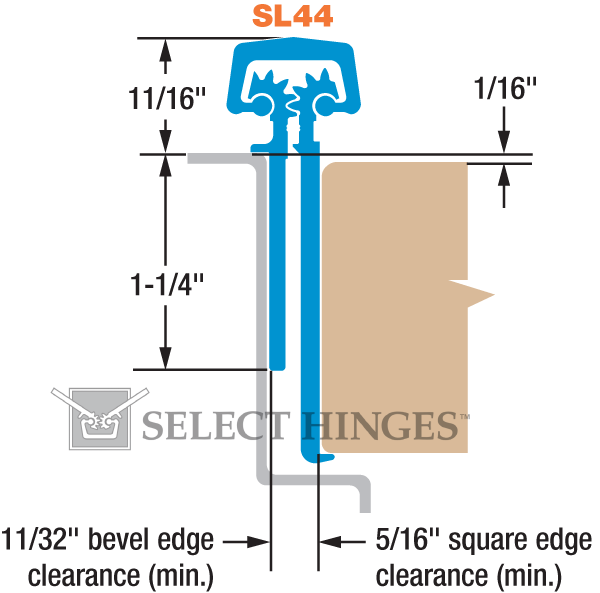

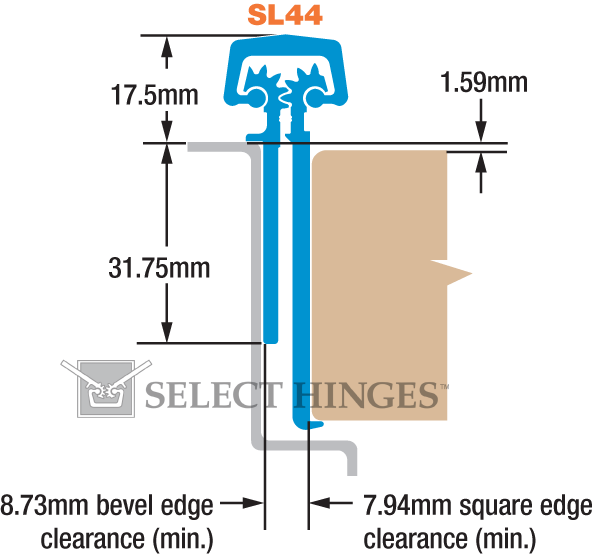

SL44 HD


Door edge protector. 1/16"1.59 mm door inset. For 1-3/4"44.45 mm doors.
SL44 HD geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

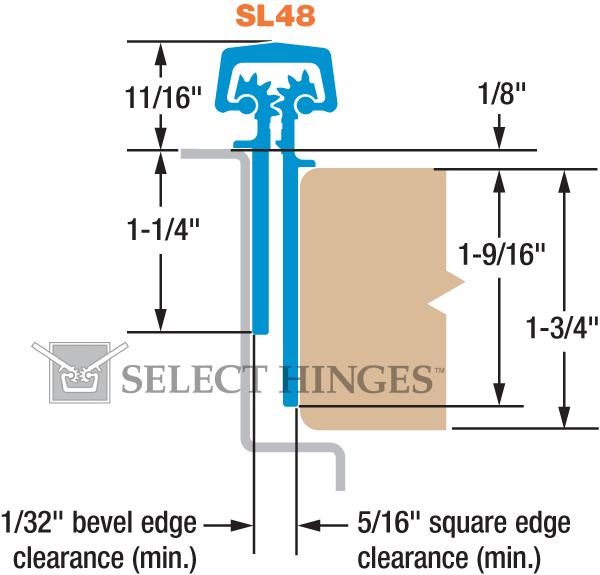

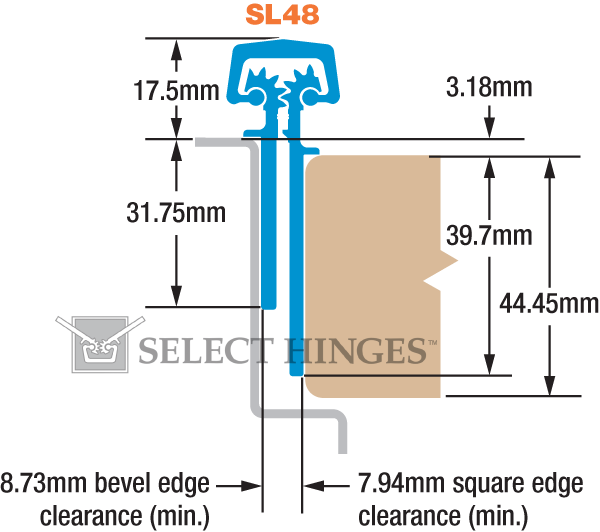

SL48 HD


1/8"3.17 mm door inset. For 1-3/4"44.45 mm doors.
SL48 HD geared continuous hinges are BHMA Grade 1 certified.
Preparations & Accessories ▶
Electrical
Accessible Through-Wire
Electric Power Transfer Cutout
Exposed Electric Monitor Switch
Concealed Adjustable Monitor Switch
Access Panel
Removable PanelFire Rating
90-minute Fire Rating
3-hour Fire RatingHospital Tips
Polymer TIPIT® Ligature-Resistant Hospital Tip
Geared Hospital Tip Prep
Metal TIPIT® Ligature-Resistant Hospital Tip
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish

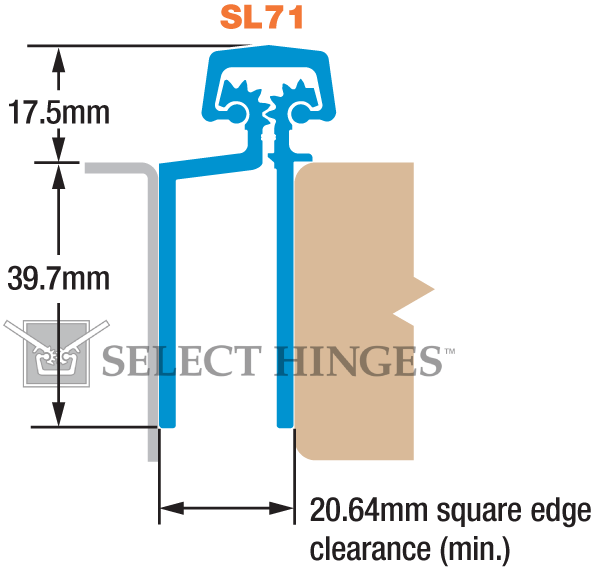

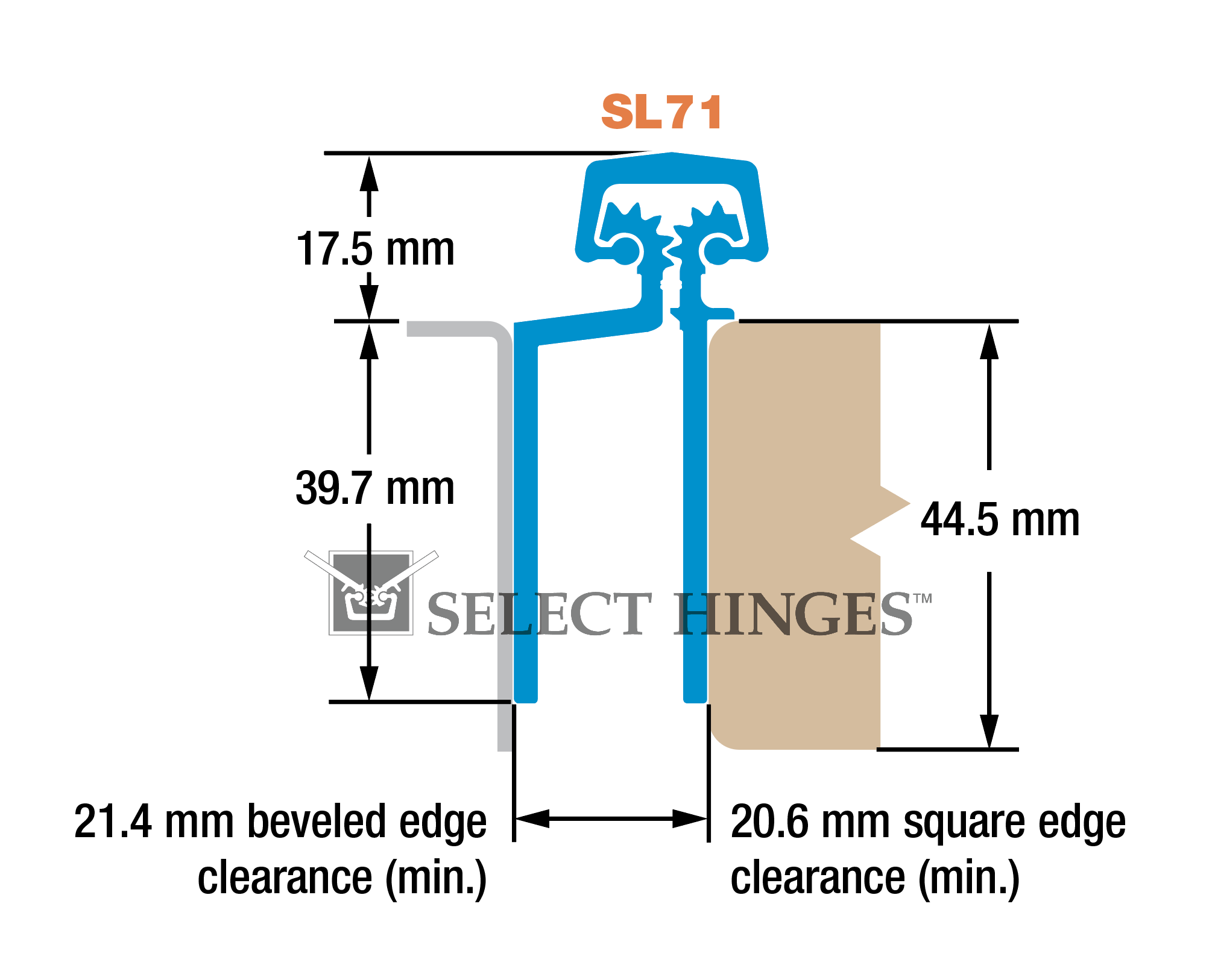

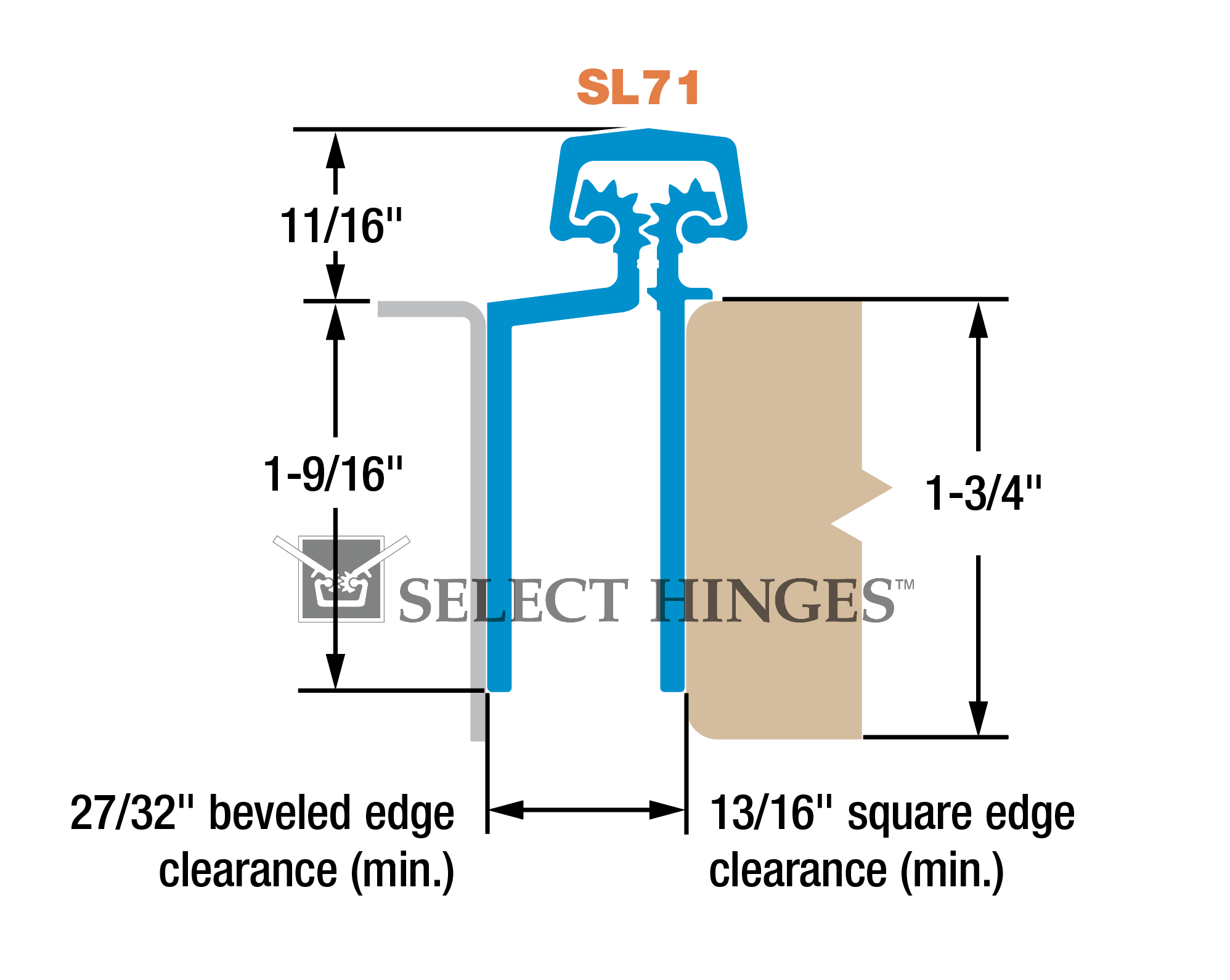

SL71 HD


Safety hinge (when used without a frame stop). Provides clearance sufficient to avoid entrapment of fingers. Flush mounted (no door inset). For 1-3/4"44.45 mm doors.
SL71 HD geared continuous hinges are BHMA Grade 1 certified.
SL84 HD/LL


Beveled frame leaf allows for weatherstripping or smoke seal.
For 1-3/4"44.45 mm doors
Preparations & Accessories ▶
Download Profile PDFDownload Profile PDF
Download Specsheet PDF
Download Instructions English | Spanish
Warranty Information
SELECT's Continuous Warranty™ covers any failure of our geared continuous hinges under normal use with no expiration date, as long as they are properly installed. The warranty has no time limit ... it literally lasts forever. If ever a replacement hinge is needed, building owners simply contact SELECT - at any time in the future. No one else in the industry can match it.
Please click here to view SELECT Hinges' warranty for its line of geared continuous hinges.
