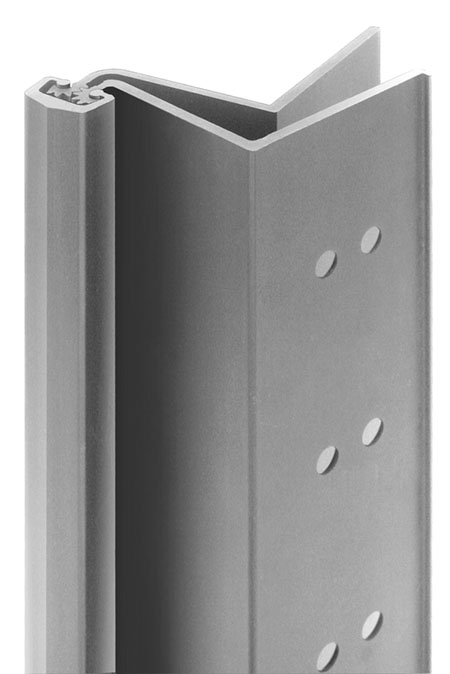

SL41 (Gear Swing Clear)

Swing Clear Geared Continuous Hinge


What does SD/HD/LL rating mean?

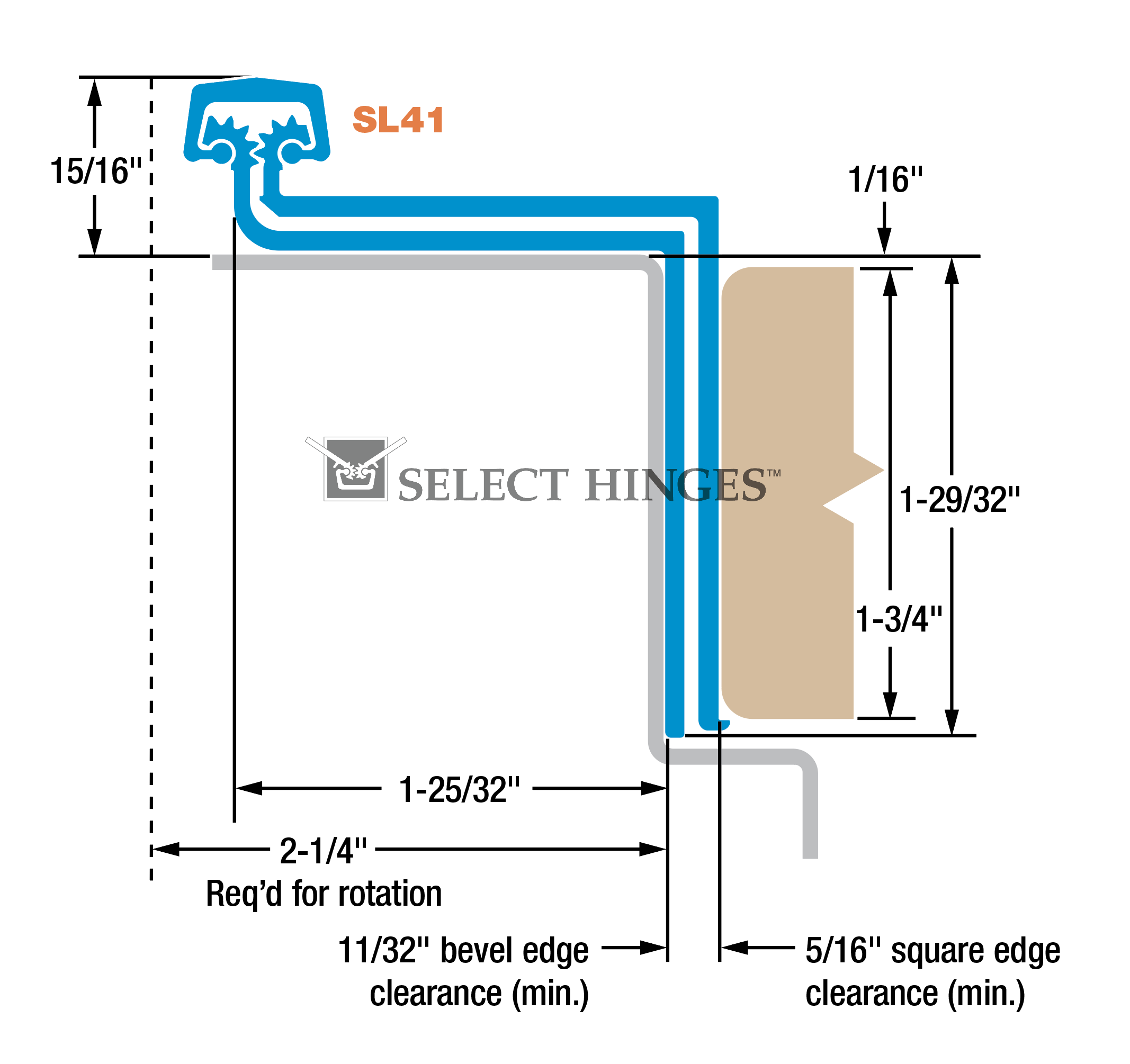

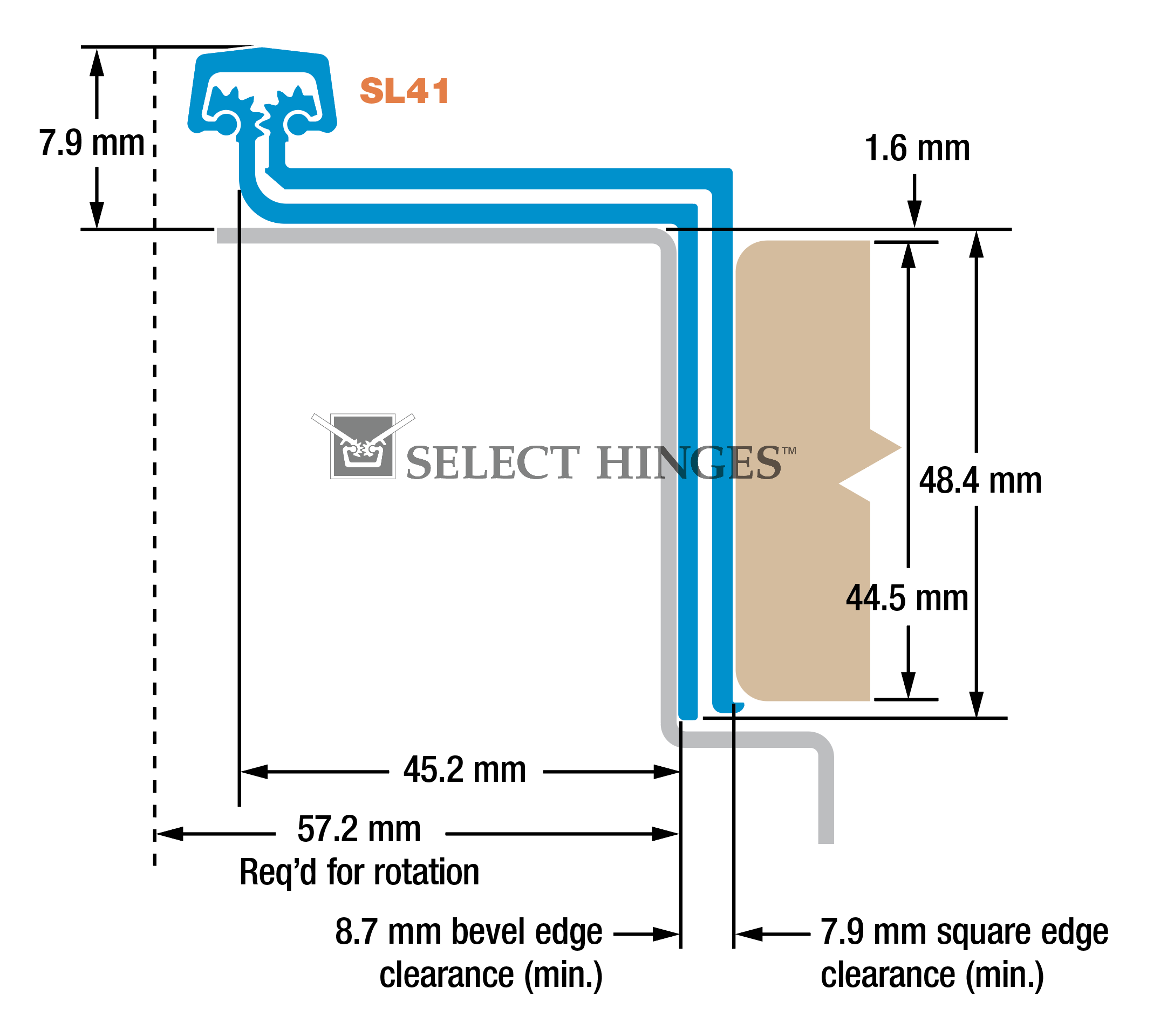

SL41 HD/LL imperial diagram SL41 HD/LL metric diagram

Door edge protector. Requires 2-1/4"57.15 mm frame face for full rotation clearance. 1-1/2"38.1 mm frame face needed for mounting. 1/16"1.59 mm door inset. For 1-3/4"44.45 mm doors.

All SL41 geared continuous hinges are BHMA Grade 1 certified.

Warranty Information

warranty thumb-1SELECT's Continuous Warranty™ covers any failure of our geared continuous hinges under normal use with no expiration date, as long as they are properly installed. The warranty has no time limit ... it literally lasts forever. If ever a replacement hinge is needed, building owners simply contact SELECT - at any time in the future. No one else in the industry can match it.

Please click here to view SELECT Hinges' warranty for its line of geared continuous hinges.


Others claim their hinges are the best. We prove it. Our geared continuous hinges have resisted more brutal testing than any. Read more.

Rep Locator

Want to cut your door repair costs and save your maintenance budget? Contact a representative today.

Stop the vicious repair cycle

Calculate how much SELECT hinges can save you annually in door repairs. Click here.
